Shoulder Balls/Chest Armor



The Third Part of the suit,The shoulder balls and chest armor, are now complete.


The chest plate and backpack are vacu-formed styrene plastic, painted and decaled. The shoulder balls master mold was made from a styrofoam ball and foam core, which was then covered in thixotropic silicone, and set to harden after a fiber-glass shell was added, the skin was then pulled off and filled with a two part urethane solution and painted (LEDs were added afterwards).

STATUS

Completed

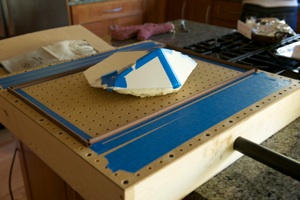

the foam core master for the chest plate    on the vacuforming table

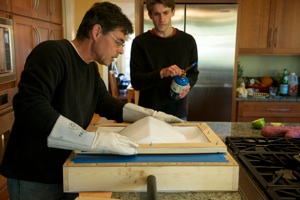

Vacuforming the chest plate

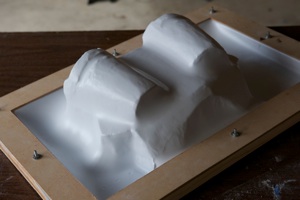

The Master inside of the styrene

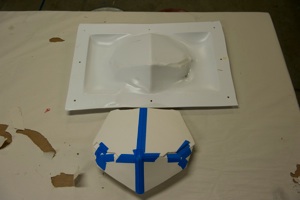

the master and the vacuformed piece

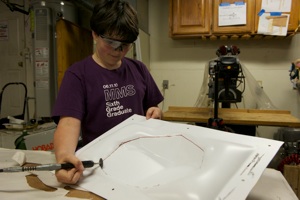

dremeling out the chest plate

Designing the Backpack

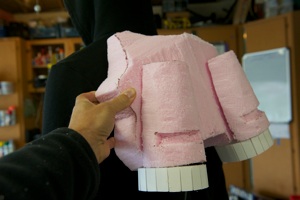

The Prototype Backpack

The prototype backpack and final chest plate

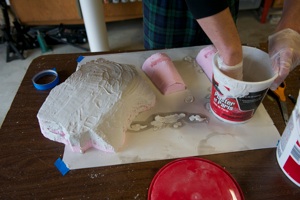

Plastering the backpack

Plastering the backpack and shoulder ball

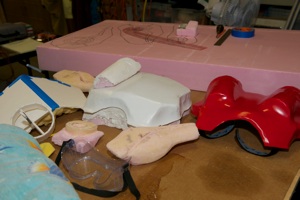

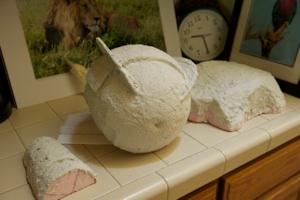

Masters of the shoulder ball, backpack, and nozzle for backpack

The Vacuformed backpack

Applying the thixotropic silicone

The shoulder ball covered in thixotropic silicone

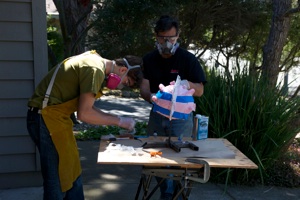

Preparing for adding fiberglass

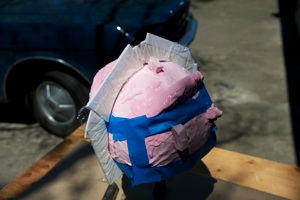

Adding the fiberglass shell

Painting the chest plate

The painted backpack

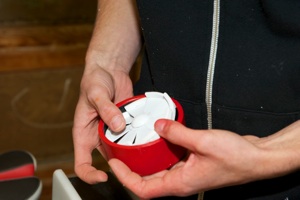

Making the fans for the backpack

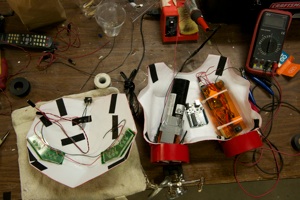

The underside of the chest plate and backpack

Decalling the backpack and chest plate

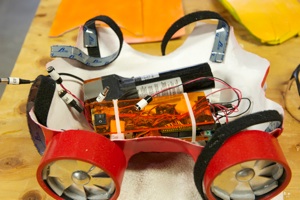

The final arrangement of the backpack innards
